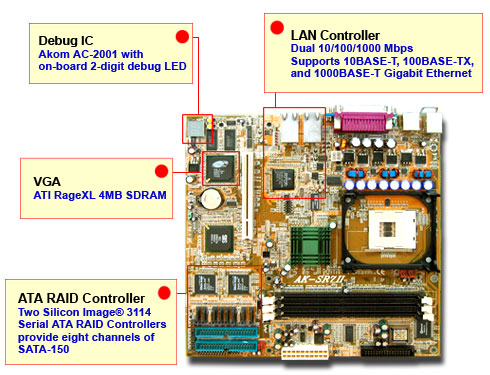

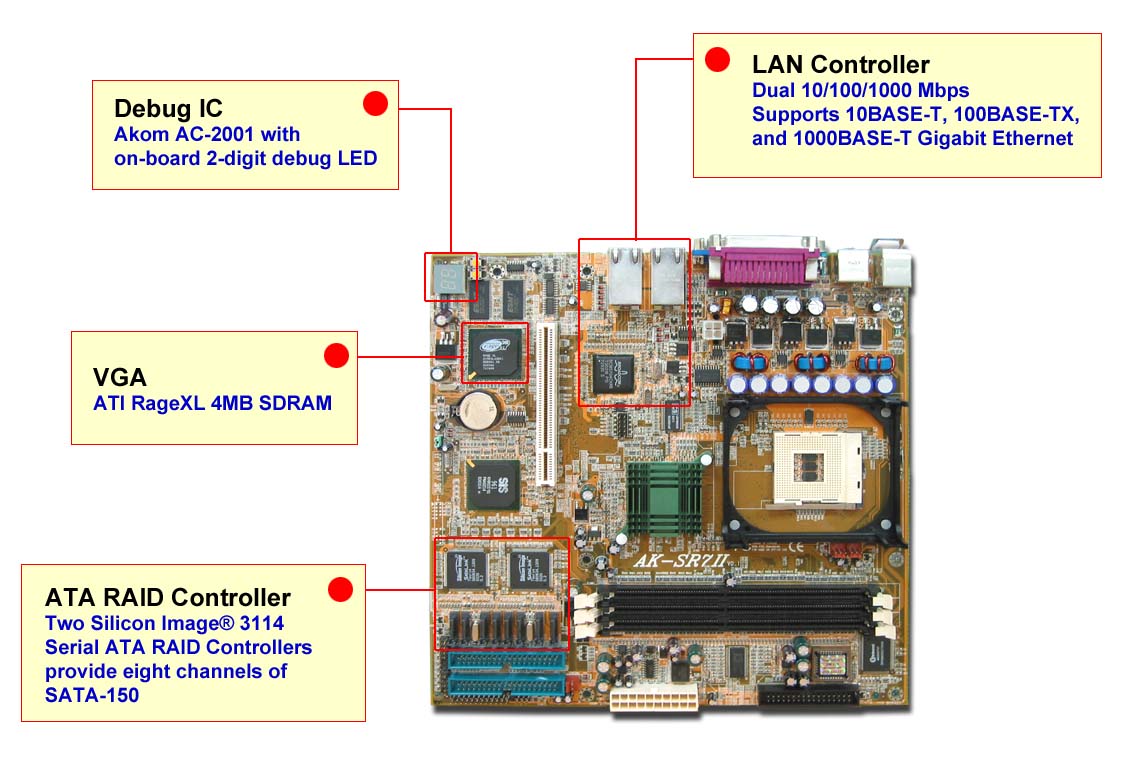

| :: AK-SR7 II Specifications |
| Processor/Cache |
| Processor Supported | Intel® P4® processors with 256KB/512KB of integrated L2 cache and a 400/533 MHz system bus. |
| System Memory |
| Memory Capacity |
Three DIMM sockets for up to 3 GB(2GB for DDR333) |
| Memory Type |
Unbuffered DDR200/266/333 |
| DIMM Sizes |
128MB, 256MB, 512MB, 1GB |
| Memory Voltage |
2.5V only |
| Error Detection |
None |
| Integrated On-Board |
| Chipse |
SiS® 645DX & 961B |
| ATA RAID Controller |
Two Silicon Image® 3114 Serial ATA RAID Controllers provide eight channels of SATA-150 that can be configured into RAID level 0, 1, 0+1, or JBOD |
| VGA |
ATI RageXL 4MB SDRAM |
| Broadcom® 5704 |
Dual 10/100/1000 Mbps Supports 10BASE-T, 100BASE-TX, and 1000BASE-T Gigabit Ethernet embedded in PCI-66MHz alpha-Bus, RJ45 Output. |
| System BIOS |
| BIOS Type |
Award® BIOS |
| Mechanical |
| Server Board Style |
Micro ATX |
| Input/Output |
| PCI |
One 32-bit/33MHz slots |
| IDE |
Two ATA-100/133 EIDE channels for a total of four IDE devices. |
| Serial ATA |
Eight SATA-150 channels. |
| USB |
Two USB 1.1 connectors. |
| Serial Ports |
One asynchronous RS-232C 9-pin ports. |
| Floppy Controller |
1.44MB, 2.88MB, 3-mode support |
| Keyboard/Mouse |
PS/2 keyboard and mouse connector. |
| Parallel Port |
One parallel port |
| Management Solution |
| Debug IC |
Akom AK-2001 with on-board 2-digit debug LED. |
| Hardware |
Winbond 836971HF management controller. |
| Software |
Broadcom BASP server management. |
| Server Monitoring |
To monitor temperatures, voltages, and fans. |
| Operating Systems |
Microsoft Windows 2000, 2003 Linux, Unix, Solaris. |
| Safety/EMC Regulatory Compliance |
| U.S. |
FCC, Class A |
| Europe |
CE Mark |
